ZTW Shark G2 20A ESC 2-4S Built-in Swithcing BEC 5V/6V 4A Water-Cooling Bidirectional Waterproof Brushless Speed Controller for RC Boat Marine
Product details
| Management number | 231681912 | Release Date | 2026/06/18 | List Price | $5.72 | Model Number | 231681912 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

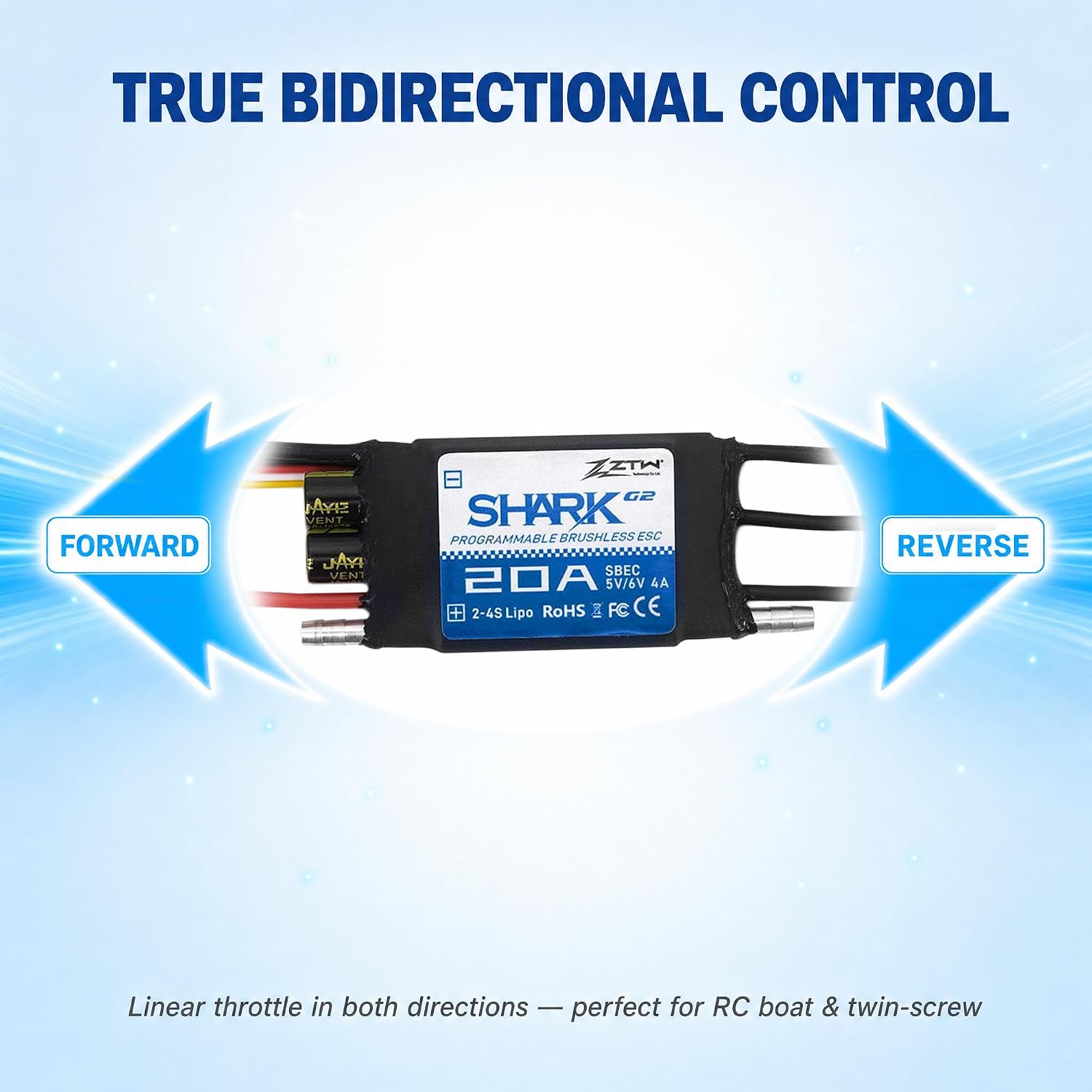

- 【TRUE BIDIRECTIONAL FORWARD & REVERSE】** Switch between "Forward Only" and "Forward + Reverse" modes via transmitter or LCD program card. Linear throttle response in both directions makes the Shark G2 ideal for twin-screw boats, catamarans, deep-V hulls and underwater thrusters that need precise reverse maneuvering — not a half-power emergency reverse like cheaper ESCs.
- 【32-BIT MCU + SR SYNCHRONOUS RECTIFICATION】** A new-gen 32-bit microprocessor with optimized BLDC algorithm delivers smoother startup, higher RPM ceiling and rock-steady throttle linearity. Synchronous Rectification cuts MOSFET conduction loss, lowers ESC running temperature and extends battery runtime — proven energy-saving on 6S high-load runs.

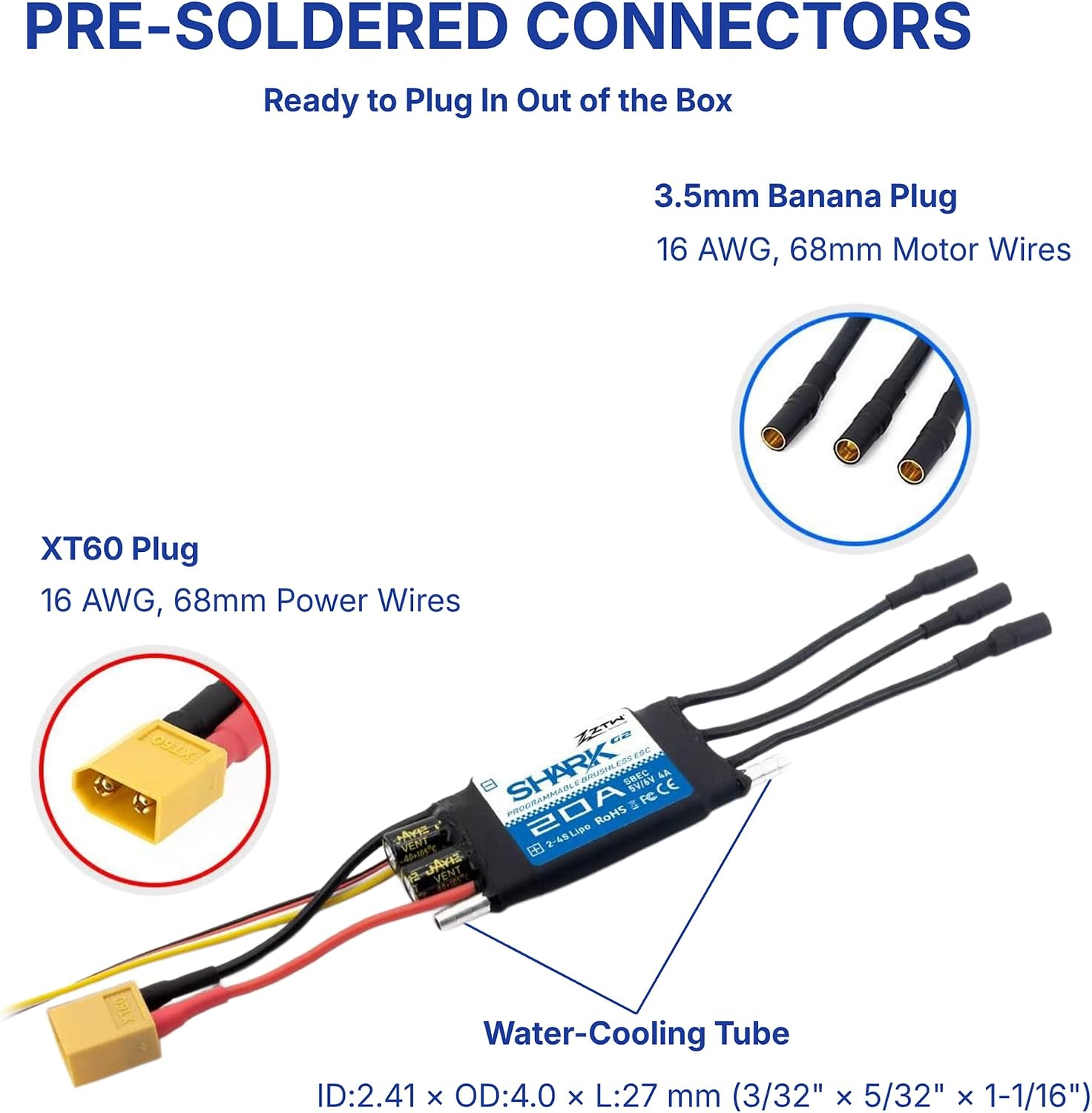

- 【WATERPROOF + INTEGRATED WATER-COOLING PLATE】** Internal PCB is fully potted with marine-grade glue against splashes, mist and humidity inside the hull. The flat aluminum water-cooling plate channels water across both the FET and capacitor zones, holding the ESC well within safe temps even on extended high-throttle runs. **Compatible with standard 3/32" ID × 5/32" OD silicone or PVC tubing — easy to source locally.**
- 【ADJUSTABLE SBEC, DRIVES STRONG SERVOS】** Built-in switching SBEC is selectable 5V or 6V — **4A continuous on 20A/30A/40A/50A models, 8A continuous on 60A/80A/100A/120A models** — enough headroom to power high-torque rudder servos, FPV cameras, lights or a water pump without a separate UBEC. Wide input 2-4S LiPo (20A–50A) / 2-6S LiPo (60A–120A).
- 【5 PROTECTIONS + 2 PROGRAMMING WAYS】** Start-up, over-heat, low-voltage cutoff, phase-loss and signal-loss protections guard your motor and pack. Program every parameter (timing / brake / battery cells / cutoff / direction / SR / acceleration) via stick on the transmitter or ZTW LCD Program Card G2.
| ASIN | B0GK77QM9Z |
|---|---|
| Size | 20A |
| Theme | Boat |
| Brand Name | ZTW |
| Model Name | Shark G2 20A |
| Unit Count | 1.0 Count |
| Item Weight | 0.03 Kilograms |
| Manufacturer | ZTW |
| Power Source | Battery Powered |
| Material Type | Aluminum |
| Operation Mode | Remote Control |
| Item Dimensions | 2.36 x 1.3 x 0.39 inches |
| Number of Items | 1 |
| Toy Vehicle Form | Boat |
| Number of Players | 1 |
| Additional Features | Water-cooled, Bidirectional, Built-in BEC |
| Battery Description | Lithium-Ion Polymer |
| Included Components | Battery Connector, Programming Box (sold separately) |
| Is Assembly Required | No |
| Age Range Description | 14 |
| Are Batteries Required | Yes |
| Batteries are Included | No |
| Manufacturer Part Number | Shark-G2-20A |
| Manufacturer Maximum Age MONTHS | 120 |
| Manufacturer Minimum Age MONTHS | 14.0 |
