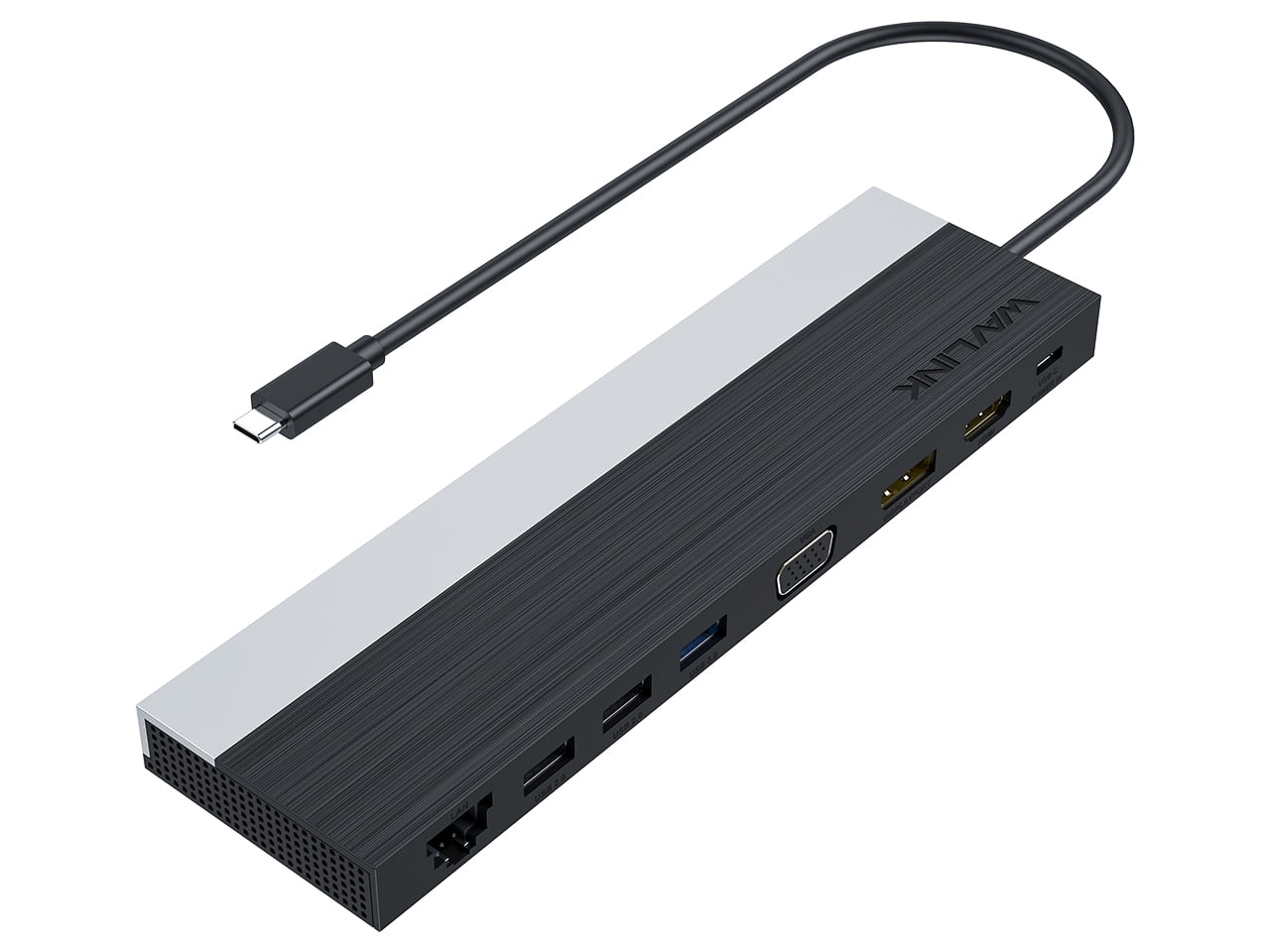

Wavlink USB C Triple Display 4K 12 in 1 MST USB C Docking Station, Type C Systems (DP & HDMI &VGA, USB 3.0&2.0 Ports, SD TF Card Reader, Gigabit Ethernet, Audio For for MacBook Pro & Windows

<b>Wavlink USB-C Triple Display 12-in-1 Docking Station</b><br><br>This docking station connects to your laptop via USB-C* and adds a rich array of ports. Through a single USB-C connection, you can connect up to three monitors, four USB devices and an audio device, plug into Ethernet for fast, stable network, and access your SD and microSD cards. The case is built using aluminum alloy to improve heat dissipation and features a slim profile for easy portability.<br><br><br>* Require laptops with full-function USB-C.<br><br><br><b>Connect the World with WAVLINK 12-in-1 MST Dock</b><br><br>One USB-C port supports PD 3.0 upstream power charging to PC computer with up to 100W<br>Both DisplayPort v1.2a and HDMI v1.4b support 4K/30Hz single display<br>One VGA port supports up to 2K (2048x1152) @60Hz single display<br>Dual displays up to 2048x1152 @60Hz; Triple displays up to 1920x1080 @60Hz<br>Two USB 3.0 ports and two USB 2.0 ports provide data transfer rates up to 5Gbps &amp; 480Mbps separately<br>One RJ45 Gigabit Ethernet port enables stable wired connection<br>One built-in SD/TF card reader supports SD v2.0, SDHC up to 32GB, and SDXC up to 2TB<br>One audio combo jack for stereo audio out and microphone in<br><br><br><b>Triple Display in 2 Modes</b><br><br>This MST dock features one DisplayPort, one HDMI port and one VGA port, supporting single/dual/triple displays in mirror/extend mode. You can enjoy HD entertainment or multitask at the same time.<br><br><b>Note:</b>VGA is not available for MacOS based laptops/PCs. For Apple computer users (MacOS ), displays are Mirror mode only.<br><br><br><b>Aluminum Alloy for Better Heat Dissipation</b><br><br>Lightweight aluminum alloy case provides stronger heat dissipation than plastic material. It is secure and reliable, ideal for your daily use.<br><br><br><b>Working Standard</b><br><br>1. USB-C: PD Power Adapter I/P<br>2. Single DisplayPort: 4K/30Hz max.<br>3. Single HDMI: 4K/30Hz max.<br>4. Single VGA: 2K/60Hz max.<br>5. 2 x USB-A Port: 5Gbps<br>6. 2 x USB-A Port: 480Mbps<br>7. RJ45: Gigabit Ethernet<br>8. Card Reader: SD / TF<br>9. Phone Jack: Stereo 4pole TRRS Stereo<br><br><br><b>System Requirement:</b><br><br>1. USB-C computer that supports USB 3.1 full-function with data transfer, USB-C Power Delivery<br>2. Windows 7 /8 /10 or later<br>3. MacOS 10.X or above<br><br><br><b>Package Content</b><br><br>1. USB-C Triple Display MST Docking Station<br>2. Quick Installation Guide<br><br><br><b>Compatibility</b><br><br>With an outstanding MST chipset, this dock enables triple display support, but it also has a higher requirement on the PC laptops. Please make sure your computer has USB-C that supports USB 3.1 full-function with data transfer<br><br><br><b>Please note that:</b> <br>The audio transmission and charging functions of this product mainly depend on the port functions of customers' equipment. If you do not know whether your equipment is suitable for using this product, you can contact us before buying it, and we will answer whether the product is suitable for your device.<br><br>

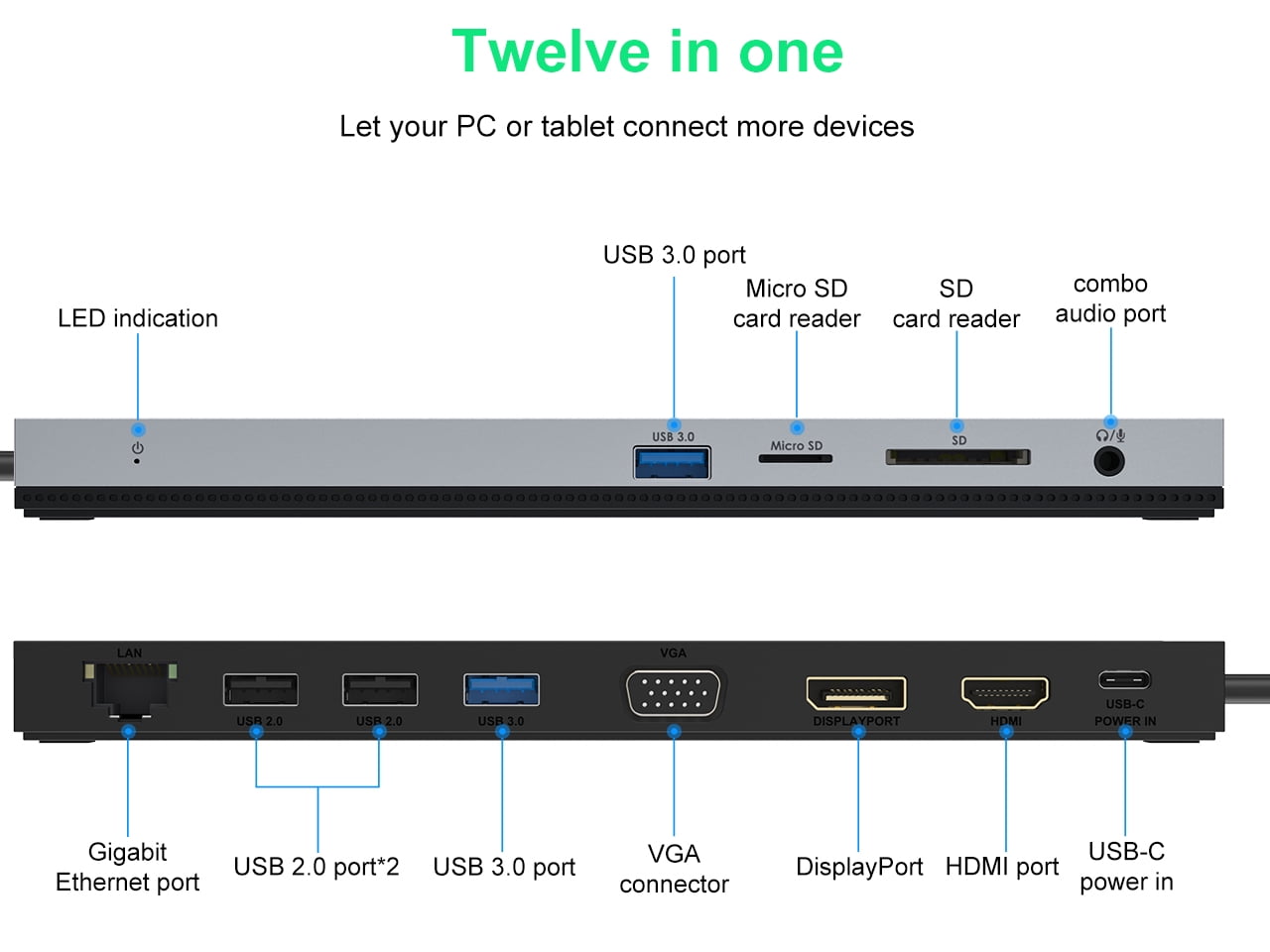

• Connects to your laptop via a single USB-C port and adds a rich array of ports, including support for up to 3 monitors, 4 USB devices, and 1 audio device.

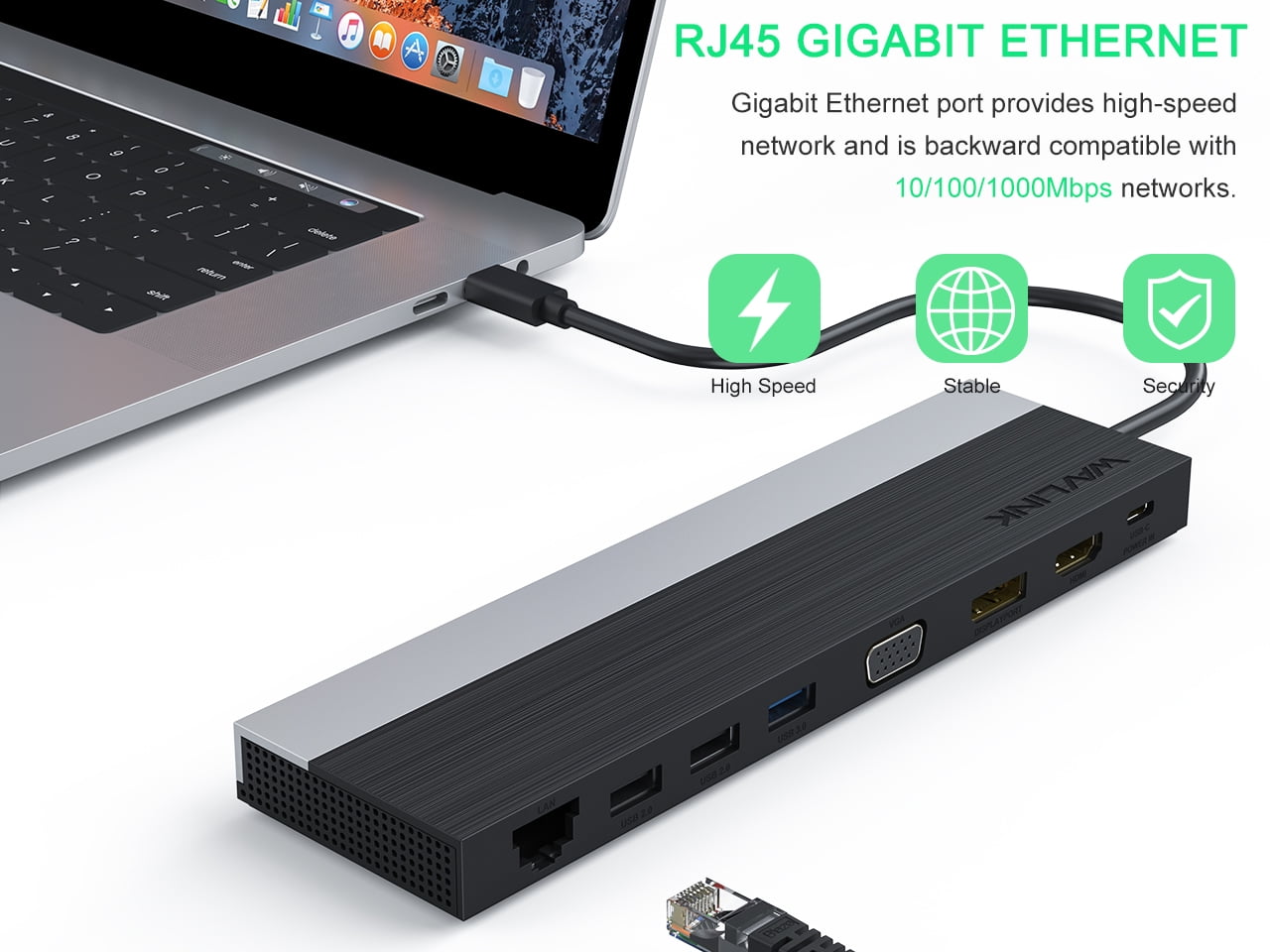

• Includes a Gigabit Ethernet port for a fast, stable network connection.

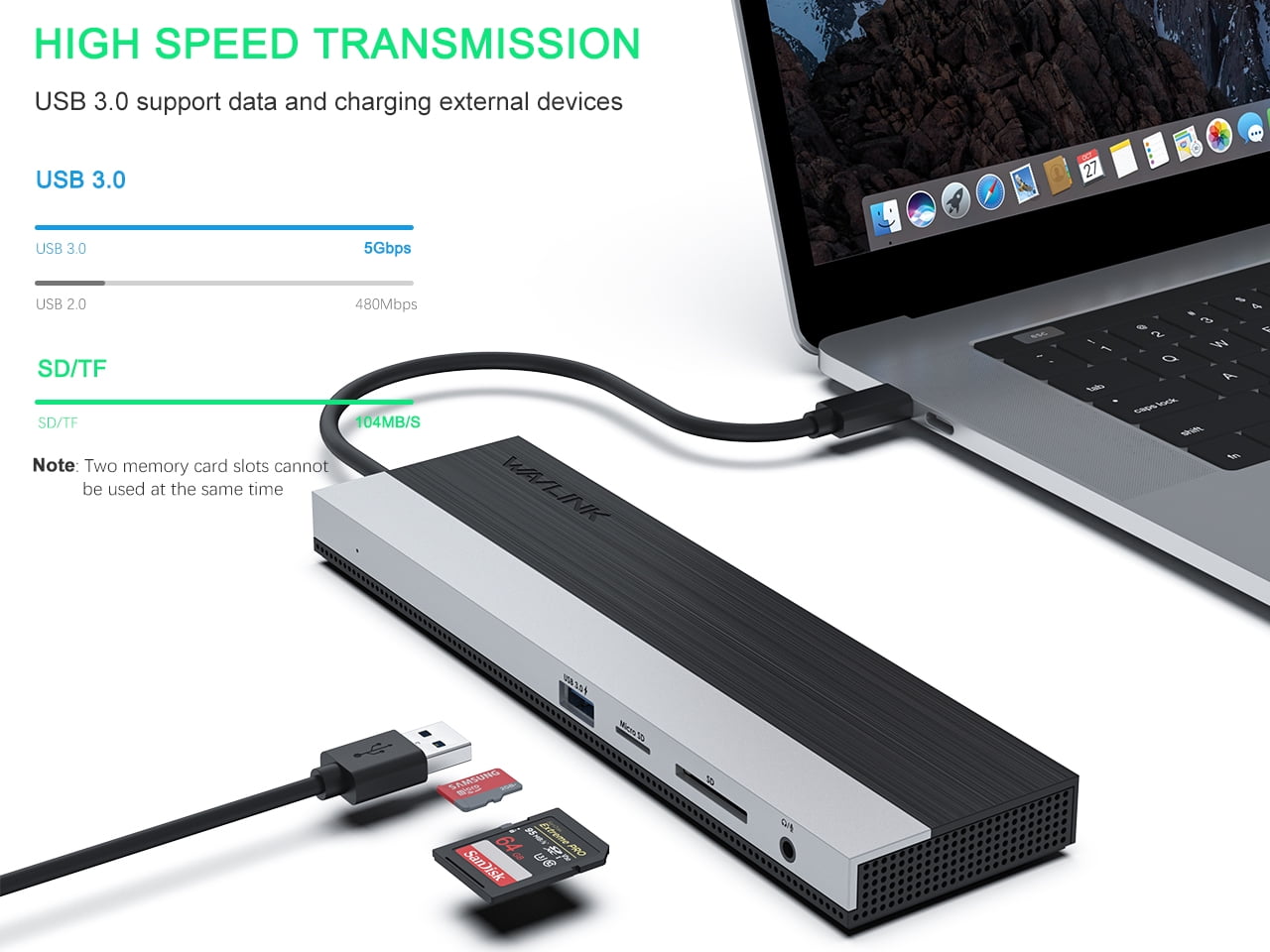

• Features an SD and microSD card reader for easy access to your storage media.
• Constructed with an aluminum alloy case for improved heat dissipation and a slim, portable design.

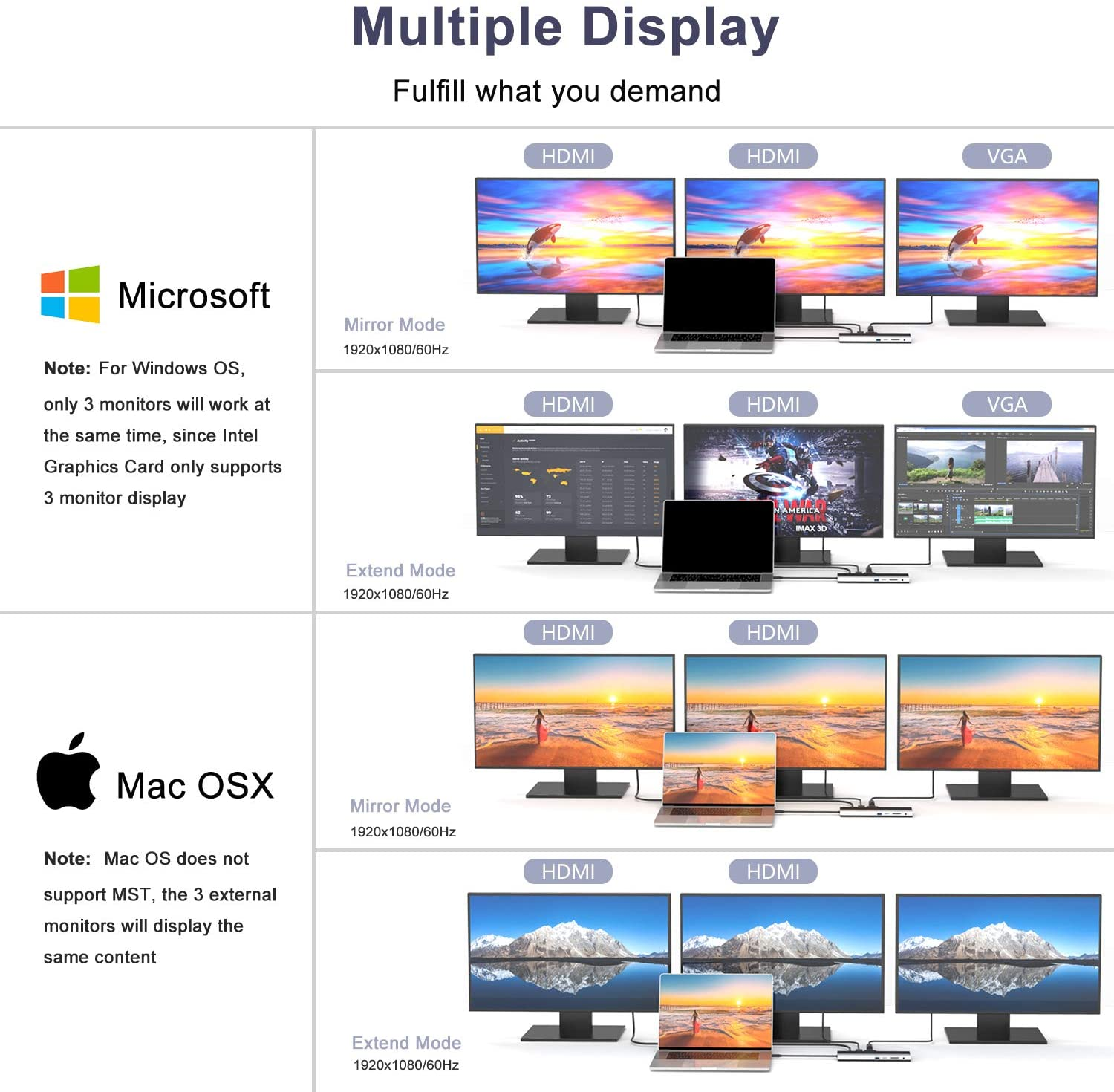

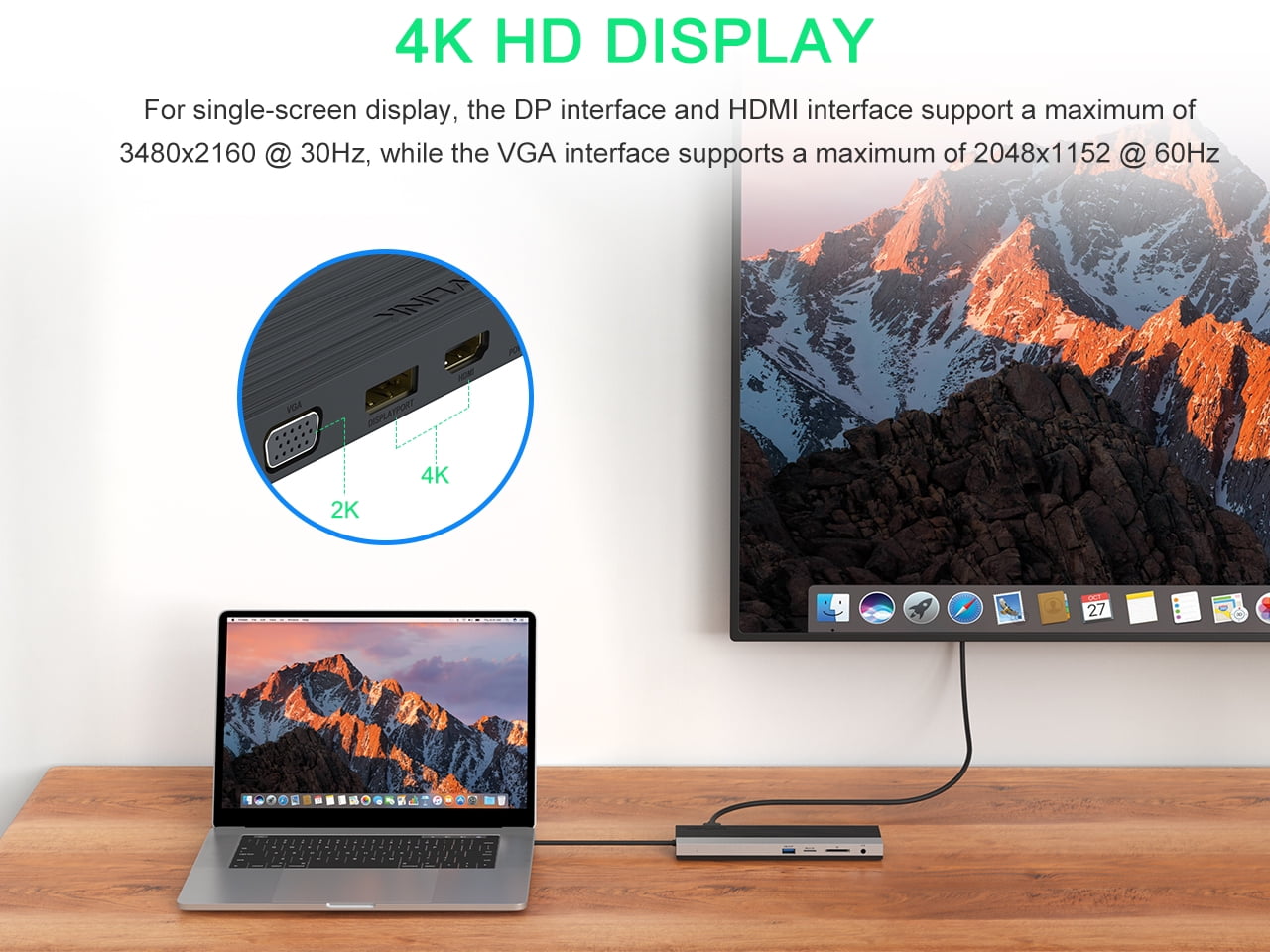

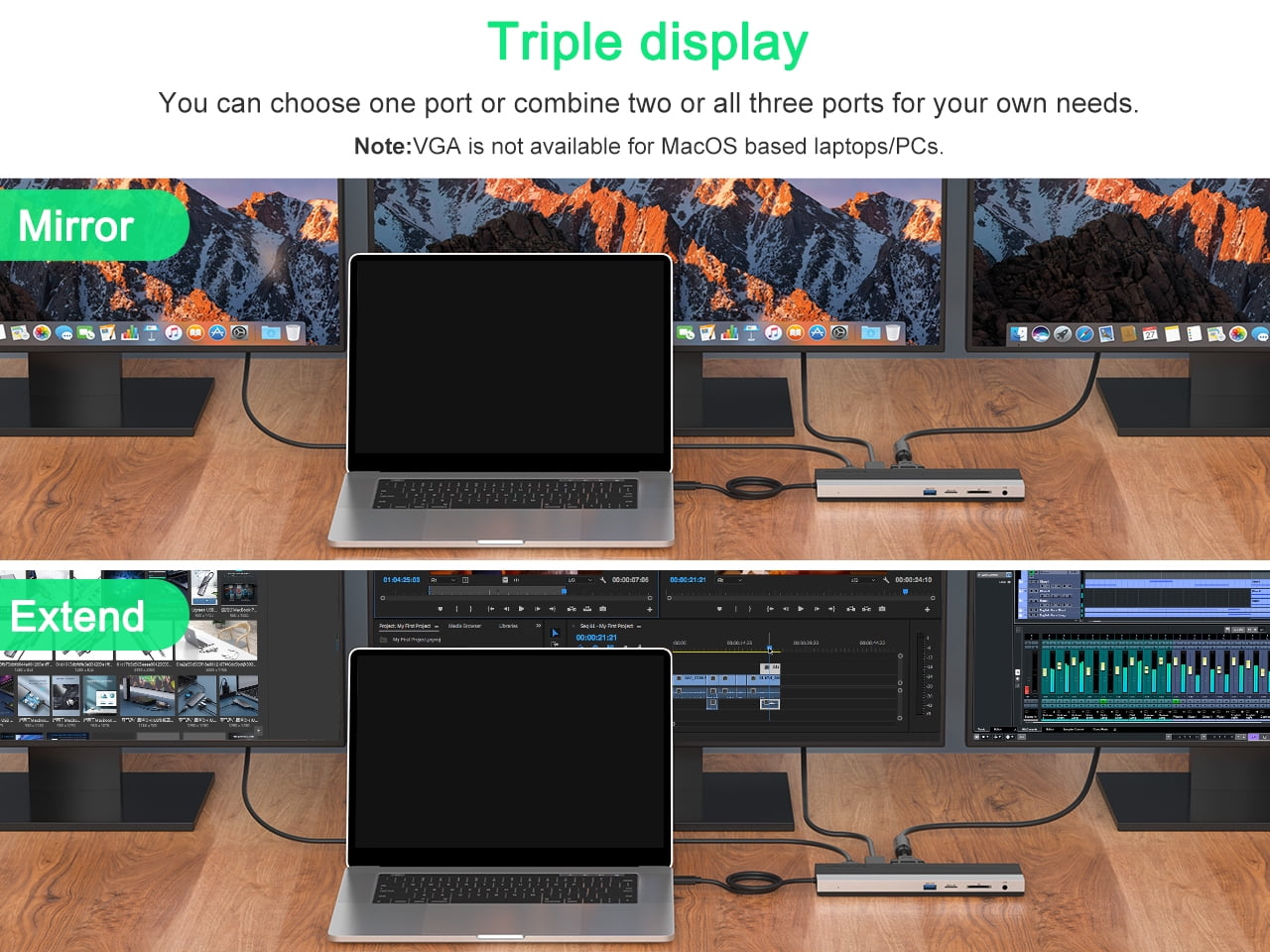

• Supports single, dual, and triple displays in mirror or extend mode, with resolutions up to 4K/30Hz on DP and HDMI, and up to 2K/60Hz on VGA.
• Note: VGA is not available for MacOS based laptops/PCs, and displays are limited to mirror mode only for Apple computer users.
• Requires a USB-C computer that supports USB 3.1 full-function with data transfer and USB-C Power Delivery.
• Compatible with Windows 7/8/10 and MacOS 10.X or above.
• Includes a Quick Installation Guide for easy setup.
