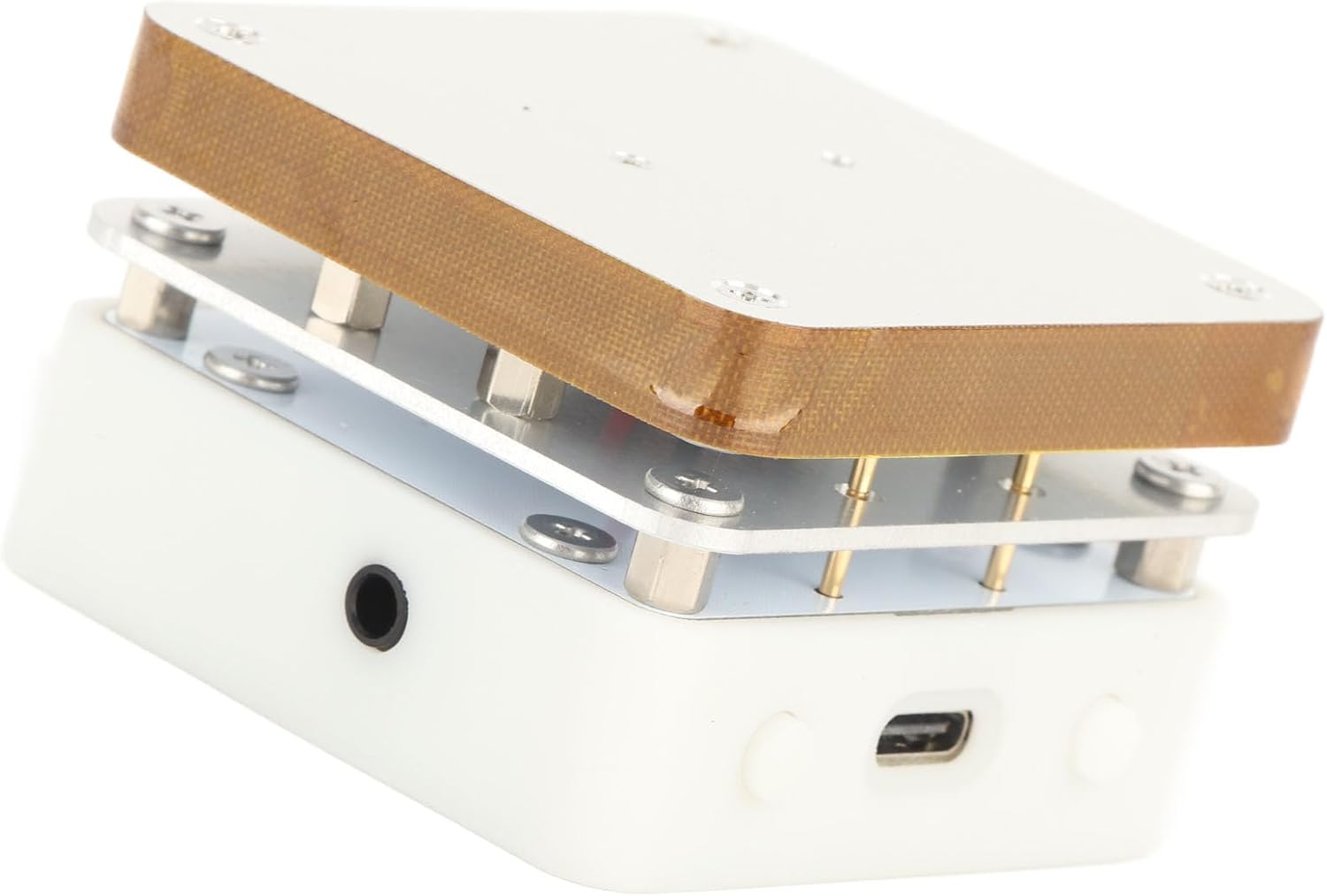

Mini Intelligent Constant Temperature Heating Soldering Plate and PCB Preheater with USB Type C Interface and PD Protocol Support - Adjustable Temperature Hot Plate - 19-25V

Item Type: Heating Soldering Plate Mode: T55Material: PCB Heating Area: Approx. 55 x 55mm / 2.17 x 2.17inWorking Temperature: 50 ℃ to 280 ℃, 122 ℉ to 536 ℉Maximum Voltage: 25VMaximum Power: 95WRecommended Voltage: 19-25VPD Power Supply: PD 20V 3APower Supply Mode: PD, QC, DCInterface Type: Type CScreen Specification: 128 x 32 Organic Light Emitting DiodeWorking Voltage Maximum Current Maximum Power Time for heating up from 30 ℃ to 200 ℃Time for heating up from 30 ℃ to 280 ℃19V3.16A 60W73s450s20V3.23A 64W62s280s24V3.8A91W45s107s25.2V3.95A99W40s87sPackage List：1 x Heating Soldering Plate 1 x Storage Box

• Mini Form Factor: This intelligent constant temperature heating soldering plate features a compact design for portability and ease of use in diverse workspaces.
• Power Supply Requirements: The welding platform supports USB Type C interface connectivity and PD protocol with a recommended operating voltage range of 19 to 25V.
• Optimized Heating Performance: Designed with a concentrated heating area to reduce energy consumption and decrease preheating time while protecting nearby components from heat damage.
• Integrated Temperature Control: Features a built in screen display for monitoring and adjusting temperature settings during preheating and soldering operations.
• Multi Purpose Utility: Suitable for technical tasks including mobile phone motherboard repair, liquid heating, and LED bead welding applications.
