KFFKFF 5"x 12" 30 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water-to-Water Heat Exchanger for Floor Heating, Water Heating, Snow Melting, and Beverage Cooling

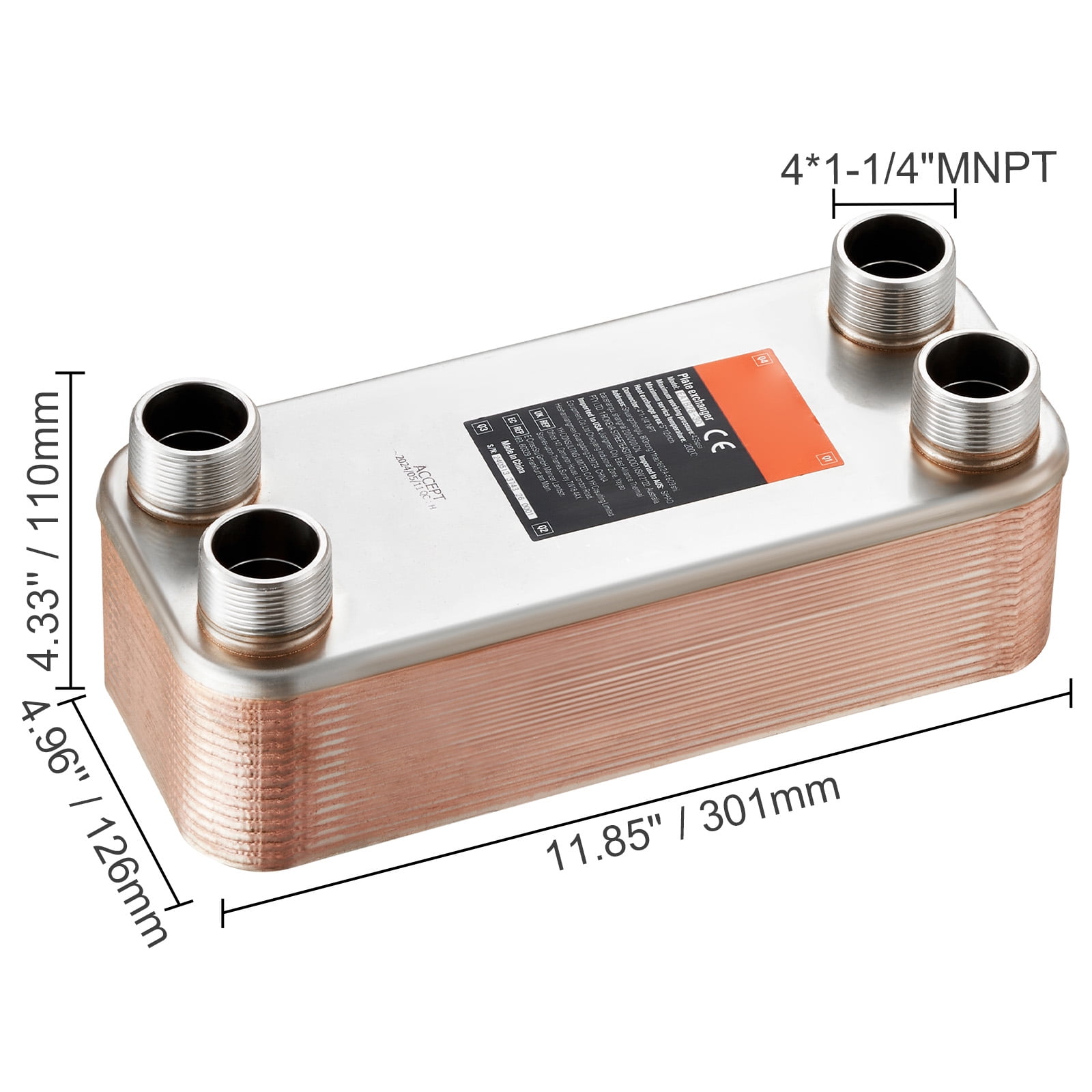

<div> <h3> <strong>Product Description</strong><br> </h3> <strong> <div>Achieve Exceptional Heating Performance</div> </strong> <div> <div>This heat exchanger is designed to be both compact and lightweight, delivering efficient thermal transfer. Constructed from 316L stainless steel and brazed with 99% copper, it ensures long-lasting durability. It is an ideal solution for applications such as solar water heating, oil heat recovery, engine cooling, and condensation systems.</div> </div> </div> <div> <div> <strong> <div>Reinforced Connection Point</div> </strong> <div> <div>This heat exchanger is designed with a 1 ¼” MNPT interface, offering well-crafted threads to ensure a seamless and hassle-free connection.</div> </div> <strong> <div>Enhanced Performance and Energy Efficiency</div> </strong> <div> <div>This liquid heating system uses uniquely designed plates to transfer heat efficiently, eliminating the need for electricity or wood fuel. It offers an economical and practical solution for producing hot water at a reduced cost.</div> </div> <strong> <div>Designed for versatile functionality, this product supports dual-purpose applications, offering flexibility to meet various needs.</div> </strong> <div> <div>Designed with four connection points, this heat exchanger supports various media applications through proper piping and functions effectively within a temperature range of -292℉ to 392℉.</div> </div> <strong> <div>Available in Various Sizes</div> </strong> <div> <div>This heat exchanger is available in four distinct sizes, offering options to suit your specific requirements.</div> </div> <strong> <div>Wide Compatibility</div> </strong> <div> <div>These heat exchanger plates are designed for use in outdoor wood stoves and boilers, radiant floor heating systems, piping setups, snow melting systems, swimming pools, and various other liquid-to-liquid heat transfer applications.</div> </div> <strong> <div>Designed for Safety</div> </strong> <div> <div>To ensure safety, the unit is crafted with rounded edges, minimizing the risk of hand injuries during operation.</div> </div> </div> </div> <div> <h3> <strong>Specifications</strong><br> </h3> <div>Model: EATB28-30</div> <div>Thermal Efficiency: 90～99%</div> <div>Heat Capacity: 260-360K BTU</div> <div>Plate Area: 5x12 inch/ 127x305mm</div> <div>Plates Quantity(pcs): 30</div> <div>Port: 4*1-1/4" MNPT External Thread</div> <div>Color: Stainless Steel + Copper Color</div> <div>Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing</div> <div>Net Weight (with Accessories): 12.9lb / 5.85kg</div> <div>Product Dimensions (L x W x H): 11.85x4.96x4.33" / 301x126x110 mm</div> </div> <div> <h3> <strong>Package Content</strong><br> </h3> <div>Heat Exchanger x 1</div> <div>Mounting Brackets x 2</div> </div>

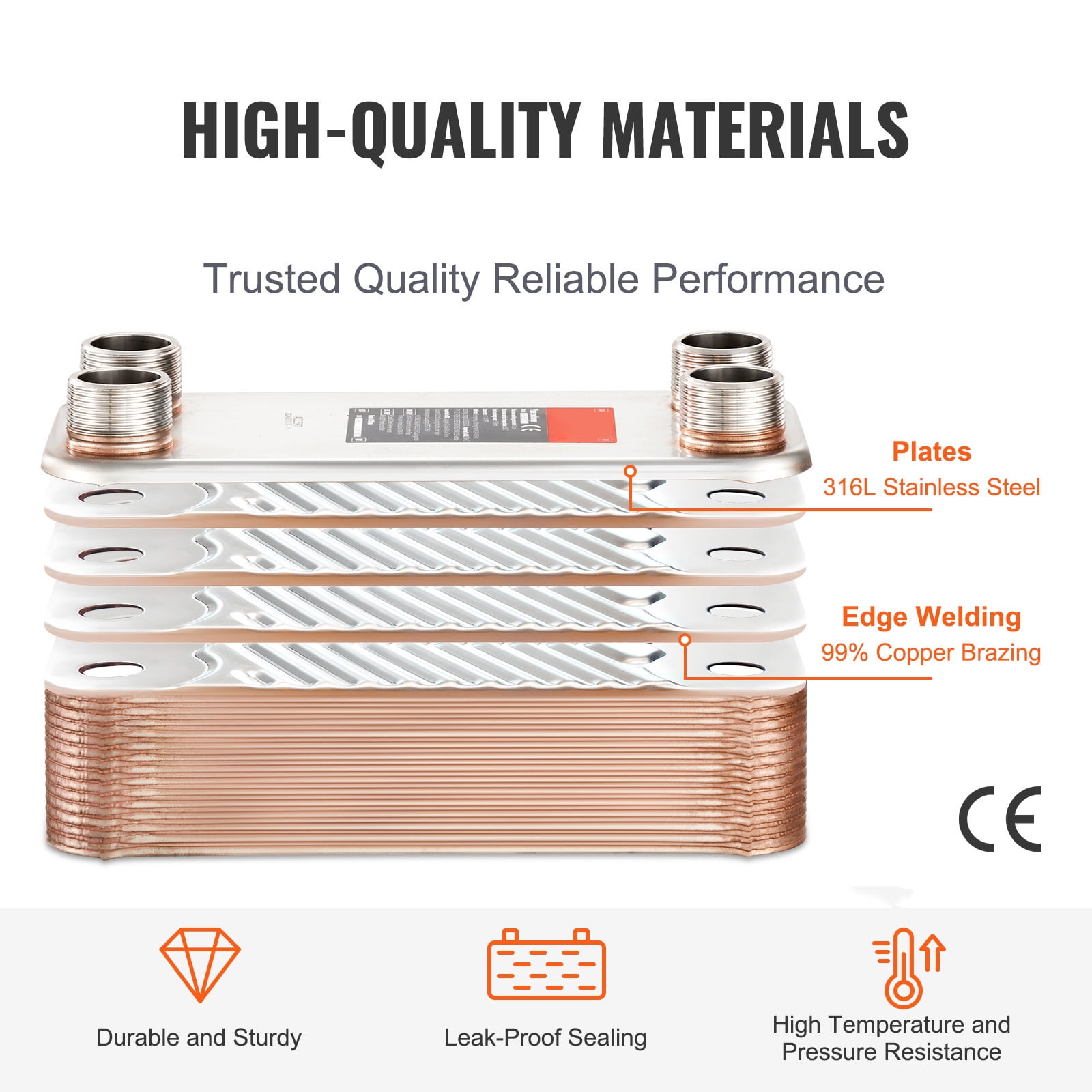

• Durable Construction: Crafted from 316L stainless steel and reinforced with 99% copper brazing at the edges and contact areas, ensuring a strong, leak-proof design capable of withstanding high pressure and temperature. Certified for dependable performance.

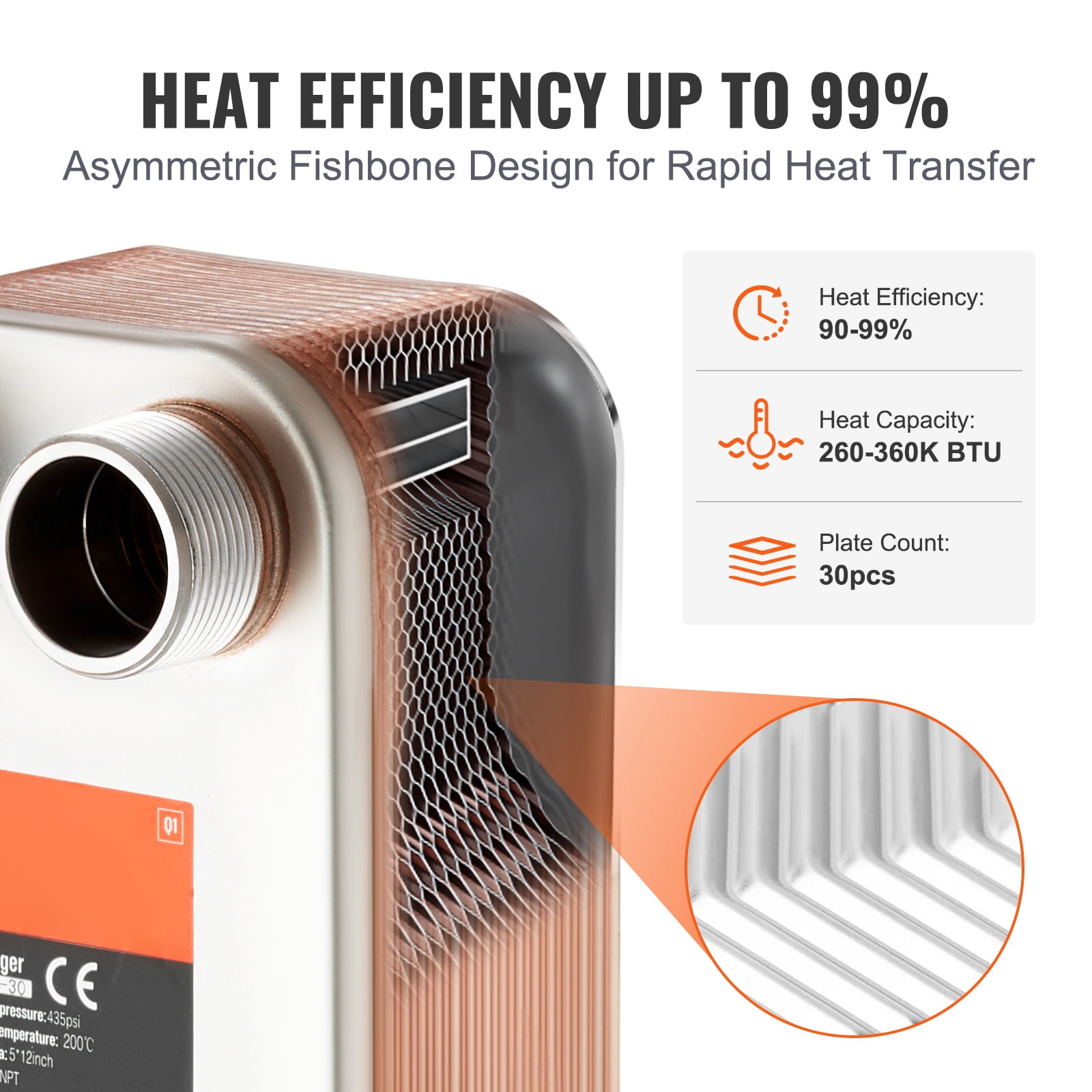

• Optimized Thermal Performance: The stainless steel plates with a unique asymmetrical herringbone design ensure effective heat exchange by creating strong pressure turbulence. Achieving up to 99% thermal efficiency, it delivers 260-360K BTU per hour, helping to conserve energy, minimize pump workload, and lower operational expenses.

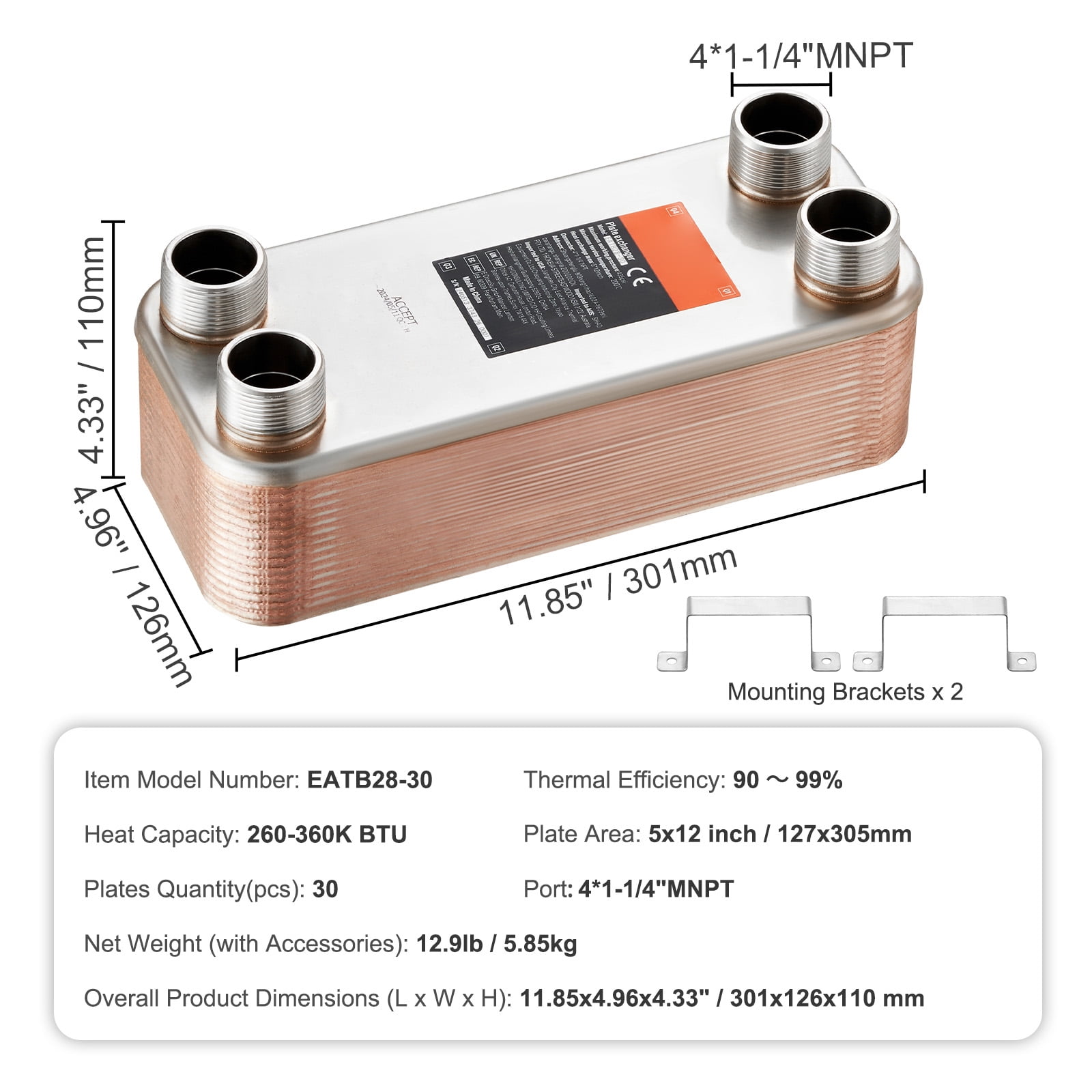

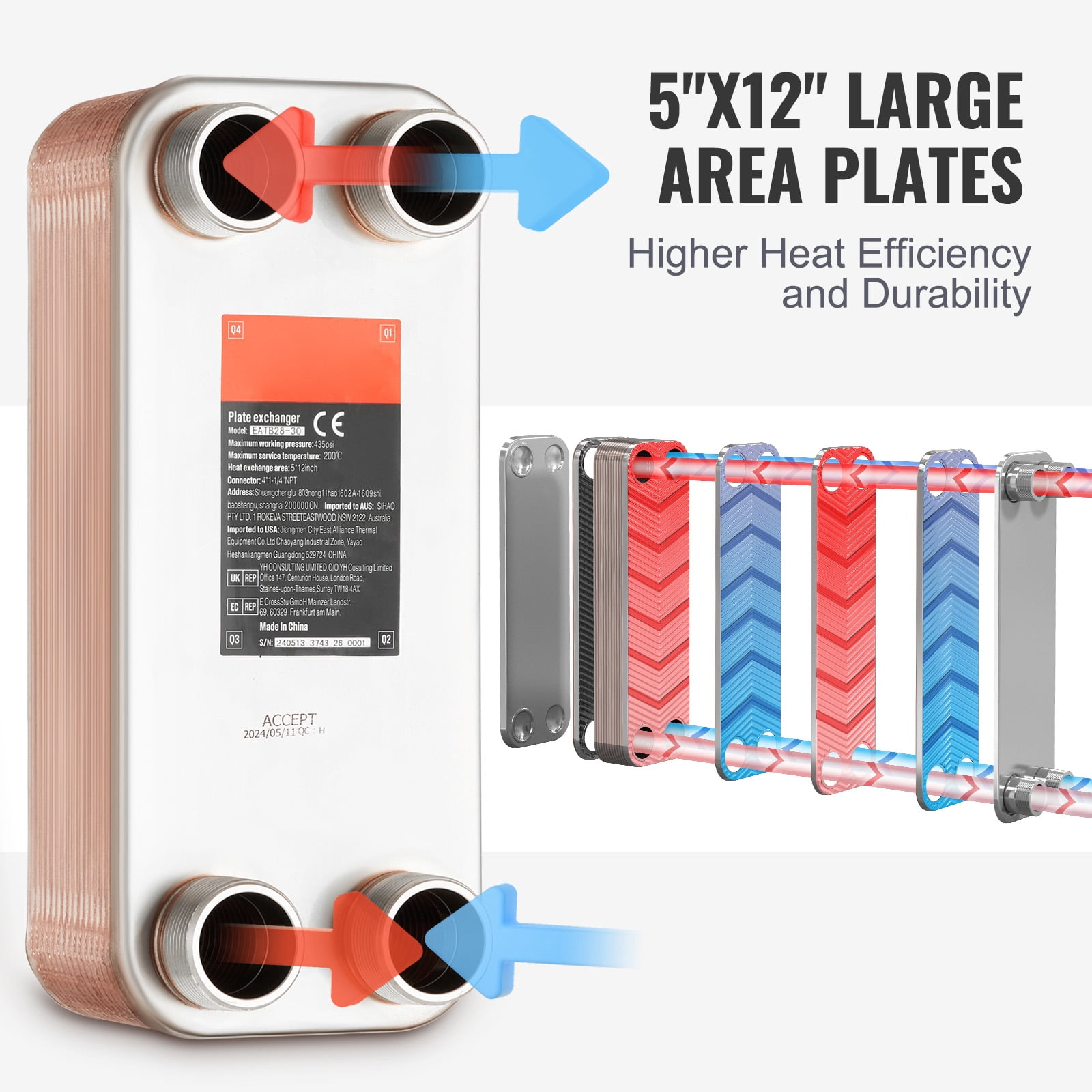

• Expanded Heat Transfer Surface: This heat exchanger is designed with 5"x12" plates and includes up to 30 plates, ensuring efficient thermal transfer for optimal performance. It operates effectively within a temperature range of -292℉ to 392℉.

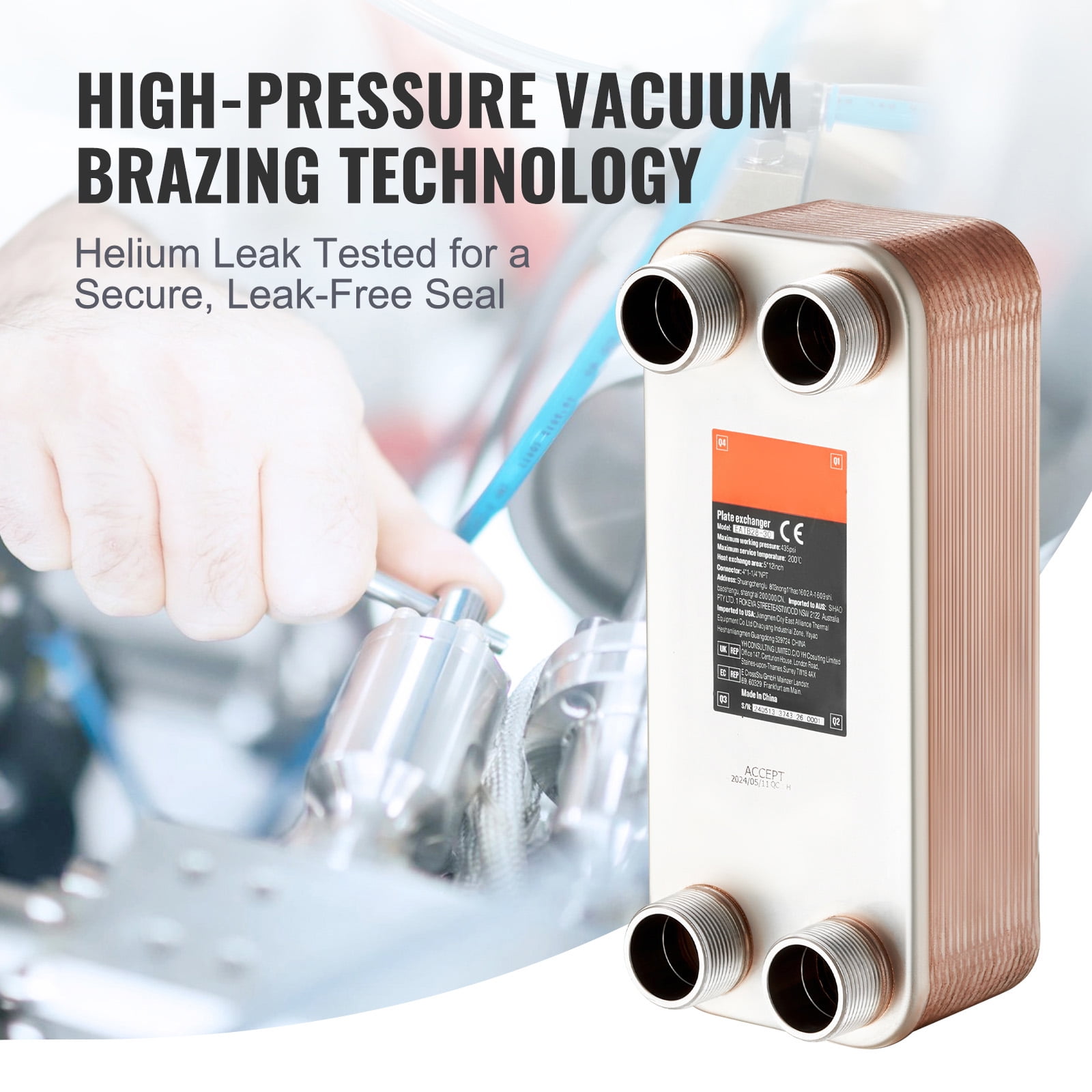

• Secure and Leak-Resistant: Designed to prevent micro-leaks, this heat exchanger is crafted using high-pressure vacuum brazing and undergoes rigorous helium leak testing, offering durability and dependable performance.

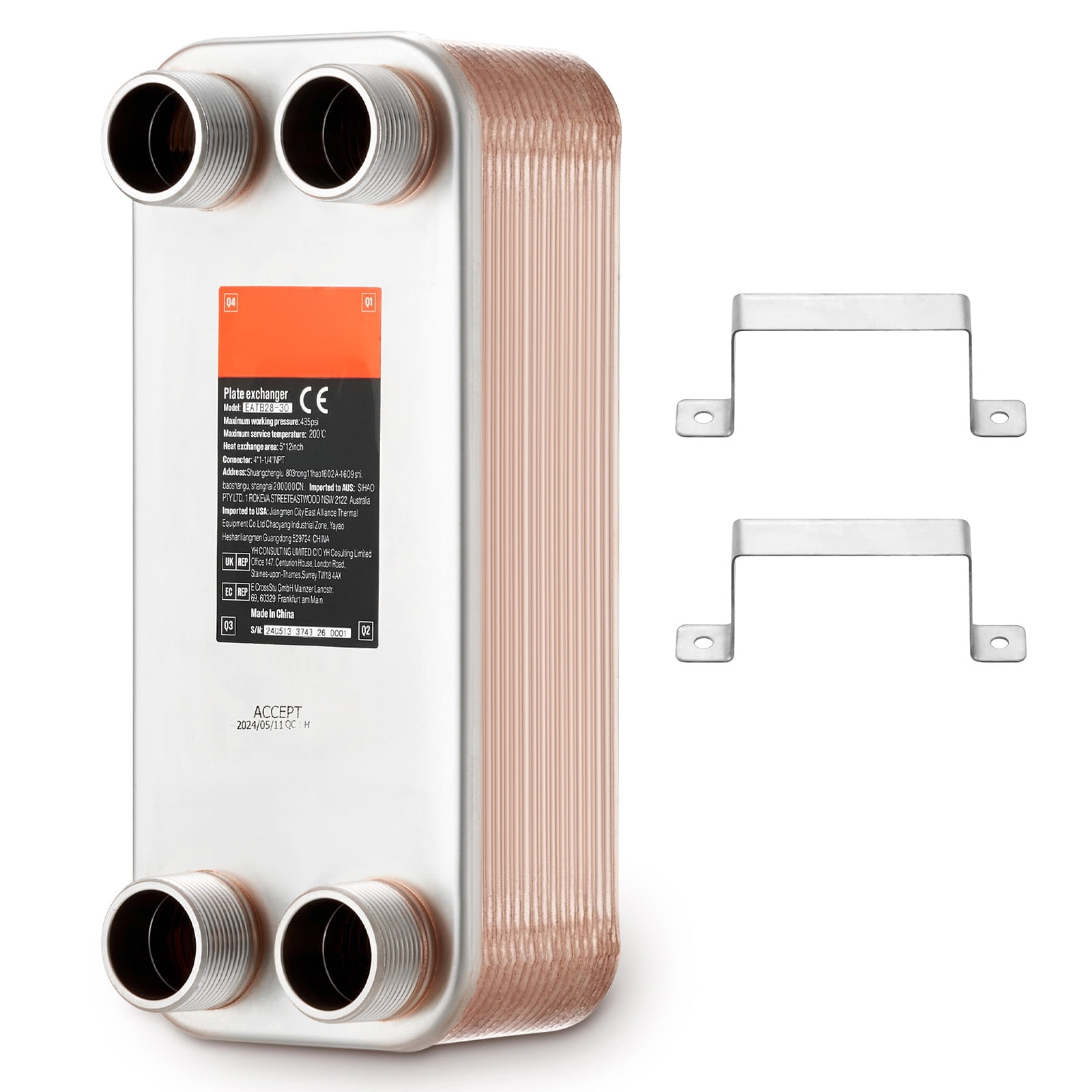

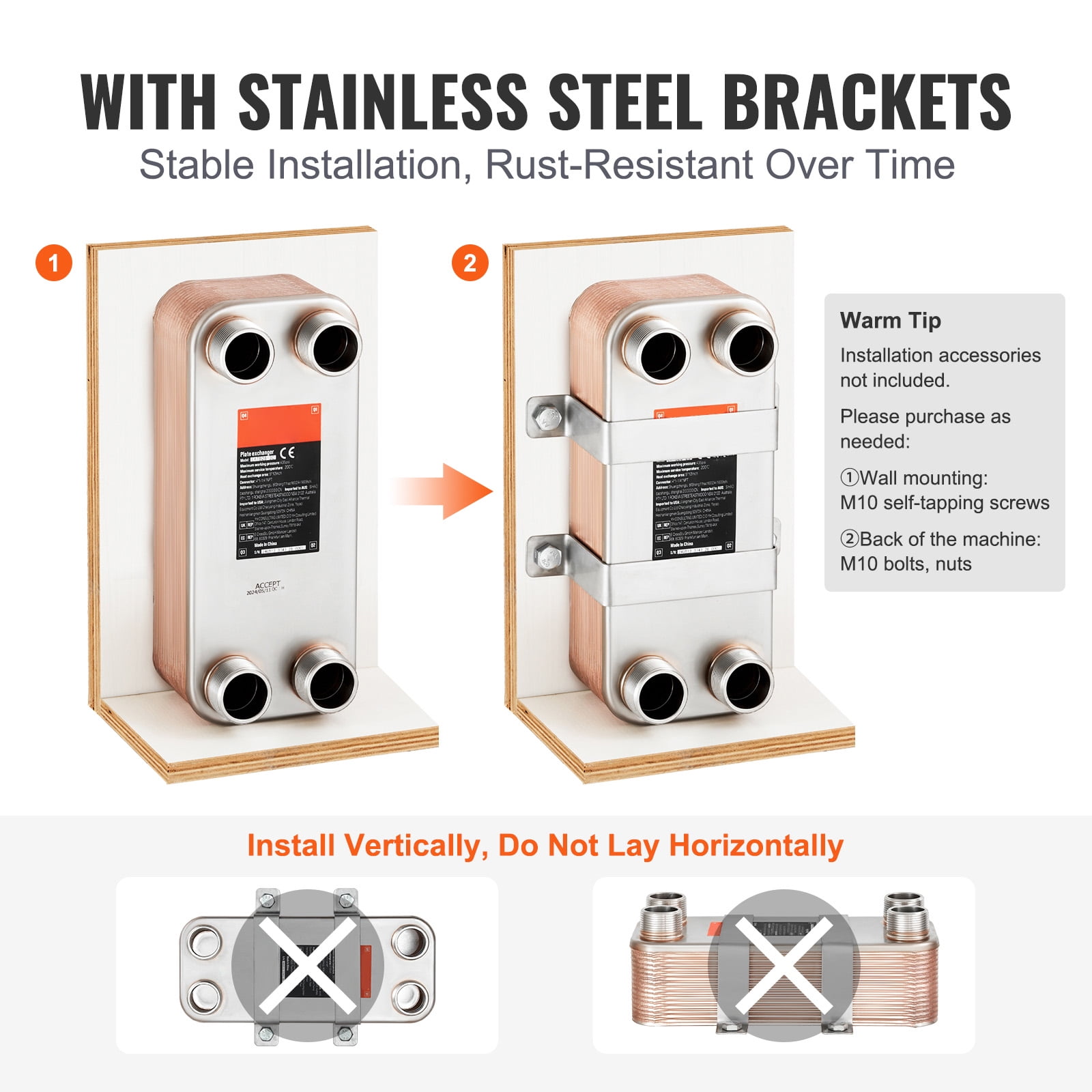

• Secure Mounting: Features two brackets crafted from durable 304 stainless steel, ensuring strong rust resistance and providing a stable and reliable installation for the heat exchanger.
