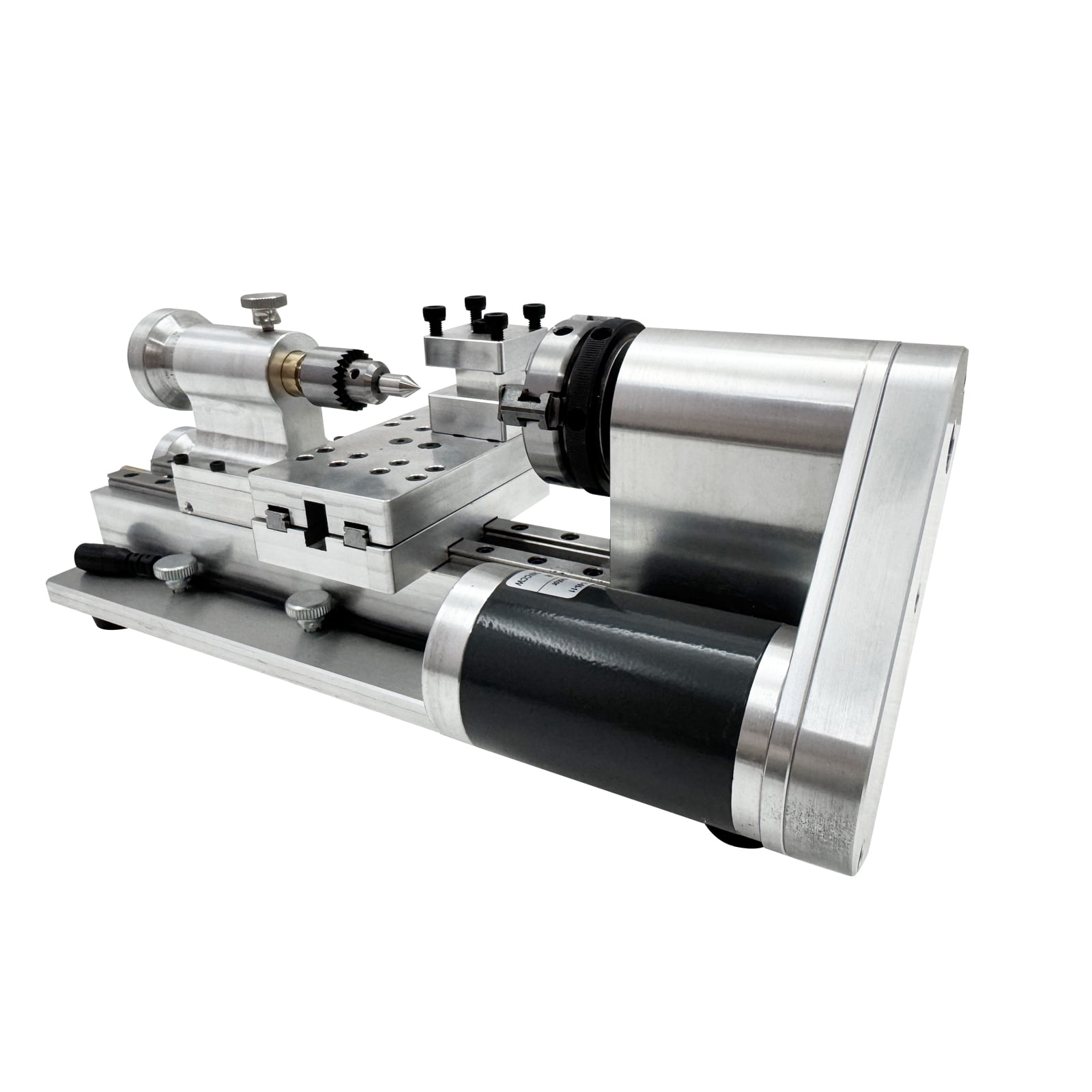

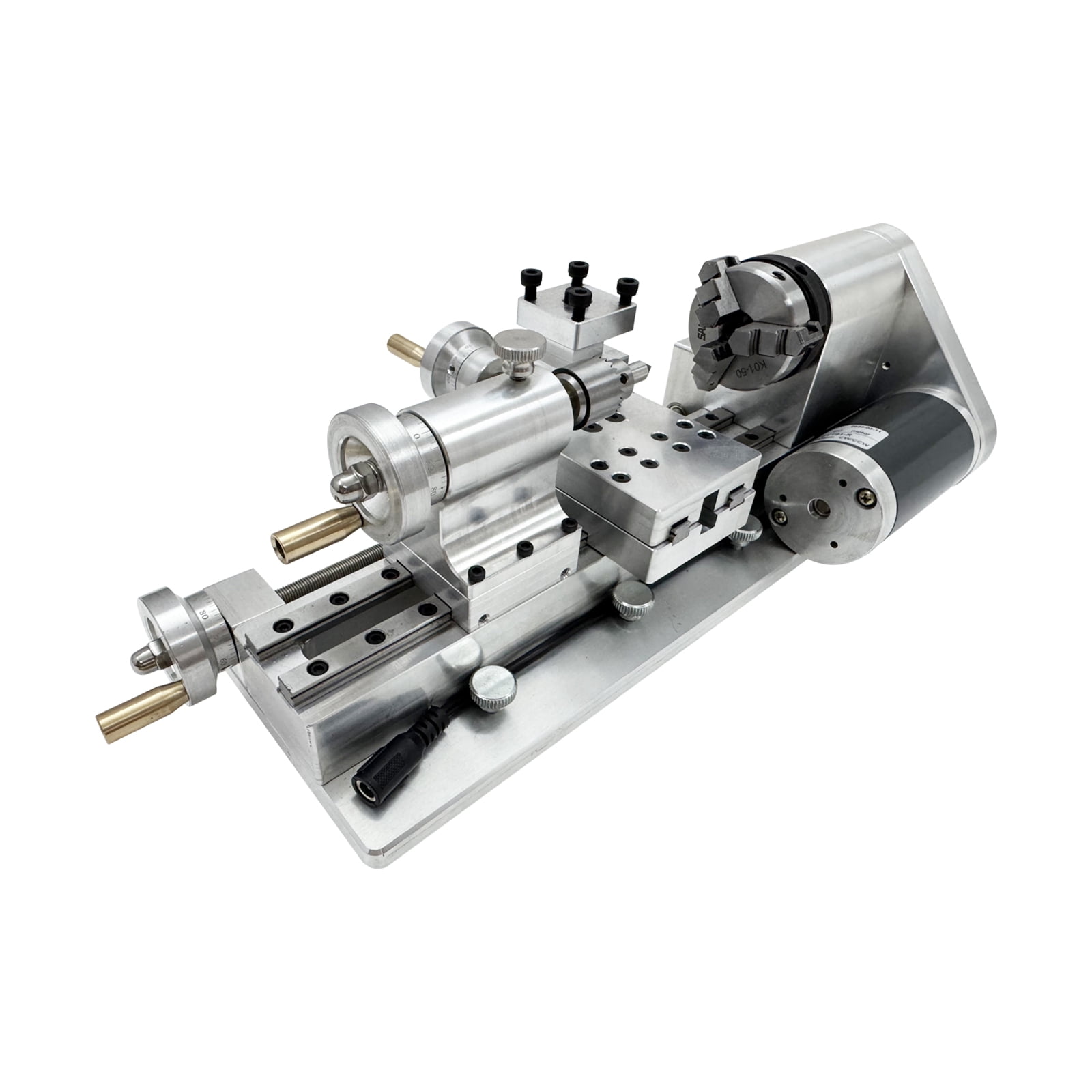

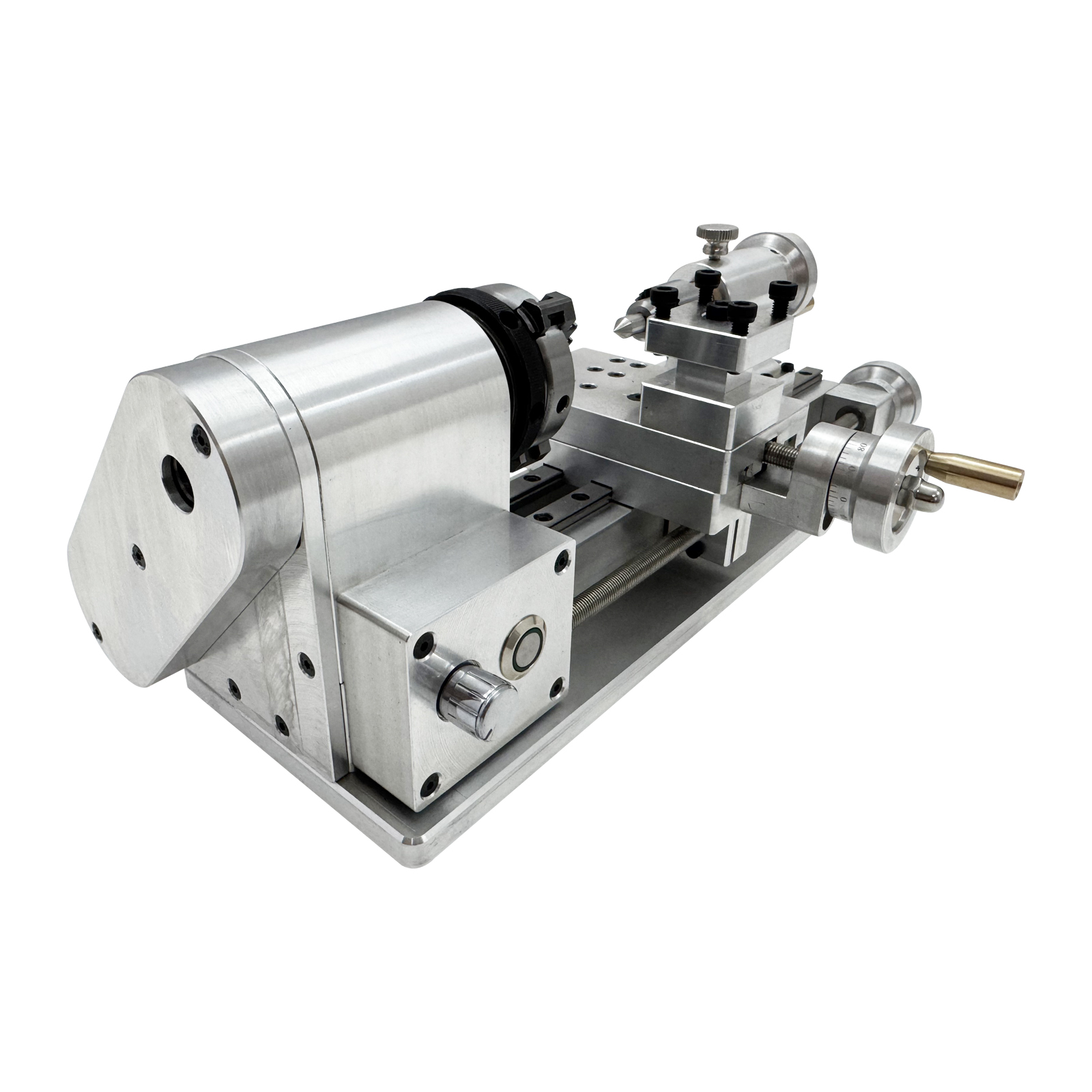

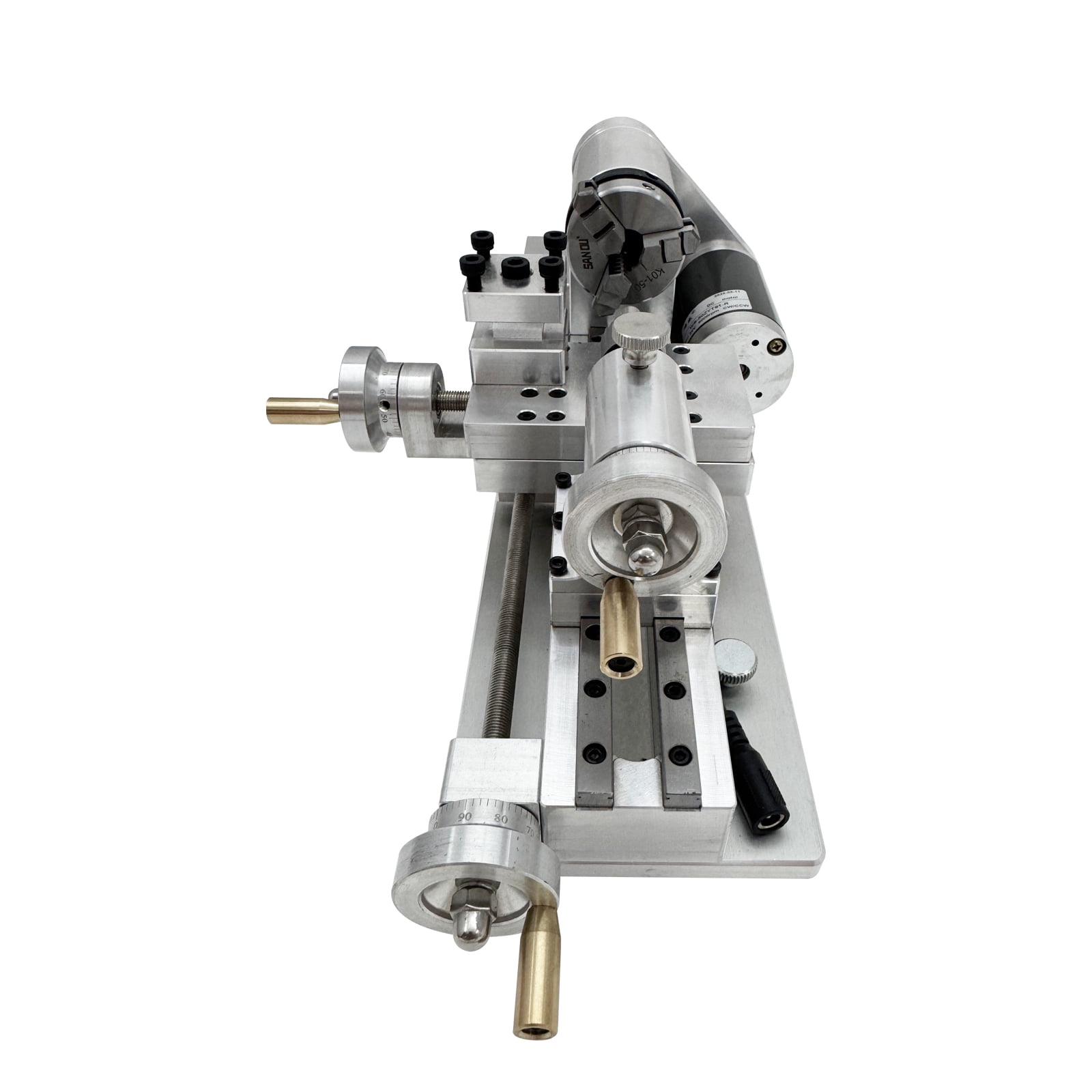

110V DIY Mini Lathe Multifunctional Home Woodworking Homemade Small Lathe Micro Lathe

Introduction:<br> The micro lathe is specifically designed for machining various rotational surfaces and end faces of revolving workpieces, including but not limited to internal/external cylindrical surfaces, conical surfaces, annular grooves, and formed turning surfaces, as well as face turning operations and other common tapered surfaces, ring grooves, and profile-turned surfaces (Important Note: This lathe model DOES NOT support thread cutting functionality!!!).<br> Before You Buy: This product is not designed for industrial purposes and has average precision. Do not compare it with industrial machinery. It is mainly intended for appreciation purposes, but also possesses light cutting capability.<br><br> Product Parameters<br> Input Voltage: AC110V<br> Output Voltage: DC24V 5A<br> Motor Type: Brushed motor<br> Body Material: Aluminum alloy &amp; Copper<br> Operation Mode: Continuous operation possible<br> Reversible Rotation: Yes<br> Motor Speed Range: 2000-6000RPM<br> Chuck Clamping Range: 0.039-1.29"(1-33mm)<br> Spindle Through Hole: 0.43"(11mm)<br> Max Z-axis Travel: 3.54"(90mm)<br> Swing Diameter: 1.96"(50mm)<br> Power: 80W motor<br> Machine Speed: 0-2800rpm<br> Tailstock Drill Bit Capacity: 0.01-0.15"(0.3-4mm)<br> Load Torque: 865-2050g.cm<br> Output Shaft Dimensions: Φ0.23*0.88" (Φ6*22.5mm)<br> Applications: Suitable for soft metals (aluminum, copper, plastic), can handle small amounts of stainless steel<br> Chuck Model: K01-50 (Thread M14X1), machine features stepless speed control<br> Package size: 17.3"*9.8"*7.8" (44cm*25cm*20cm)<br> Net weight / Gross weight: 12.7lbs(5.8kg) / 14.3lbs(6.5kg)<br><br> Precautions<br> 1. When the machine tool is in operation, it is strictly forbidden to wear gloves or touch the rotating parts of the machine. Never pass objects across a running lathe. Workpiece loading/unloading, tool installation, lubrication and chip removal must all be performed after the machine is stopped. Use brushes or hooks to remove iron chips - never use bare hands.<br> 2. Never measure workpieces or attempt to stop a rotating chuck by hand during operation. When using sandpaper, please place it on a file holder. Operating sandpaper with gloves is prohibited. Do not use torn sandpaper or files without handles.<br> 3. Operators must not leave the machine during operation. If abnormal operation is observed, please immediately stop the machine and request maintenance. In case of sudden power failure, turn off the machine immediately and retract tools from the workpiece.<br> 4. After completing machining, please remove all chips and wipe down the machine to maintain cleanliness of both the equipment and surrounding area.<br> 5. Unauthorized personnel are strictly prohibited from operating the machine. Please keep children away and prevent them from playing near the equipment.<br> 6. Never touch cutting tools, please moving machine components or rotating workpieces during operation.<br><br> Operating Instructions<br> 1. Mount the workpiece properly and lubricate the guide rails to meet machine requirements before starting operation.<br> 2. Remove the chuck wrench and any loose workpiece attachments immediately after loading/unloading.<br> 3. Adjust the tailstock, handwheel, etc. to proper positions as needed for machining, then securely fasten/clamp them.<br> 4. During the feeding process, the tool should gradually approach the workpiece to avoid impact, while maintaining a uniform speed during carriage reciprocation. When changing tools, ensure proper clearance is maintained between the tool and workpiece at all times.<br><br> Item Included (057195)<br> DIY Mini Lathe *1<br> Accessory Kit *1

• 【Desktop Compact Design】With an extremely small footprint, it's ideal for placement in home studios, desktops, or workbenches, offering easy storage and mobility‌.
• 【Premium Metallic Construction】The body primarily uses aluminum alloy and copper materials, providing superior metallic aesthetics and visual appeal compared to all-plastic models, enhancing its display value‌.
• 【Lightweight Processing Capability】Equipped with basic turning functions, it handles light cutting, trimming, and simple shaping of soft materials (e.g., cork, wax, specific plastics), meeting the basic needs of model-making and DIY enthusiasts‌.
• 【Mechanical Principle Demonstration】As a mini lathe, its structural design visually demonstrates fundamental lathe mechanics (e.g., spindle rotation, tool feed), combining educational value with mechanical aesthetics‌.
• 【Entry-Level Learning Platform】Offers a relatively low-cost, easy-to-operate platform for non-professionals or mechanical hobbyists to explore basic lathe operations and experience lightweight turning, serving as an entry-level learning tool‌.
